Folding superstructures

The basic frame and the frame of the tipping platform are welded of strong steel profiles. The peripheral steel rim is equipped with rotary bearings that enable three-sided tipping. The tipping frame is reinforced with ribs, and in the place of the hydraulic cylinder it is strengthened. The floor is made of water-resistant plywood or galvanized steel sheets, 3 mm thick. The side plates may be of anodized aluminium or painted steel. The bodies are equipped with tilting or removable underrun protection devices.


Mercedes-Benz Sprinter + 3. STRANNĚ SKLOPNÁ NÁSTAVBA

Vozido: Mercedes-Benz - Sprinter 315 CDI / DOKA PRO / S RWD Pohon: RWD Celková hmotnost: 3500 kg Provozní hmotnost: ca. 2460 kg Model: Mercedes-Benz Sprinter (907, 910) Výkon motoru: 110 kW Rozvor: 3665 mm Detailní výbava na vyžádání Nástavba: Ložná plocha 2700 mm x 2070 mm Podlaha vodovzdorná protiskluzová překližka tl. 18 mm Hliníkové bočnice 350 mm Zadní čelo kombinovaně výklopné 500 mm Přední čelo 350 mm + ocelový ochranný rám kabiny Vlastní elektrohydraulický agregát napájený z akumulátoru vozidla

Detail

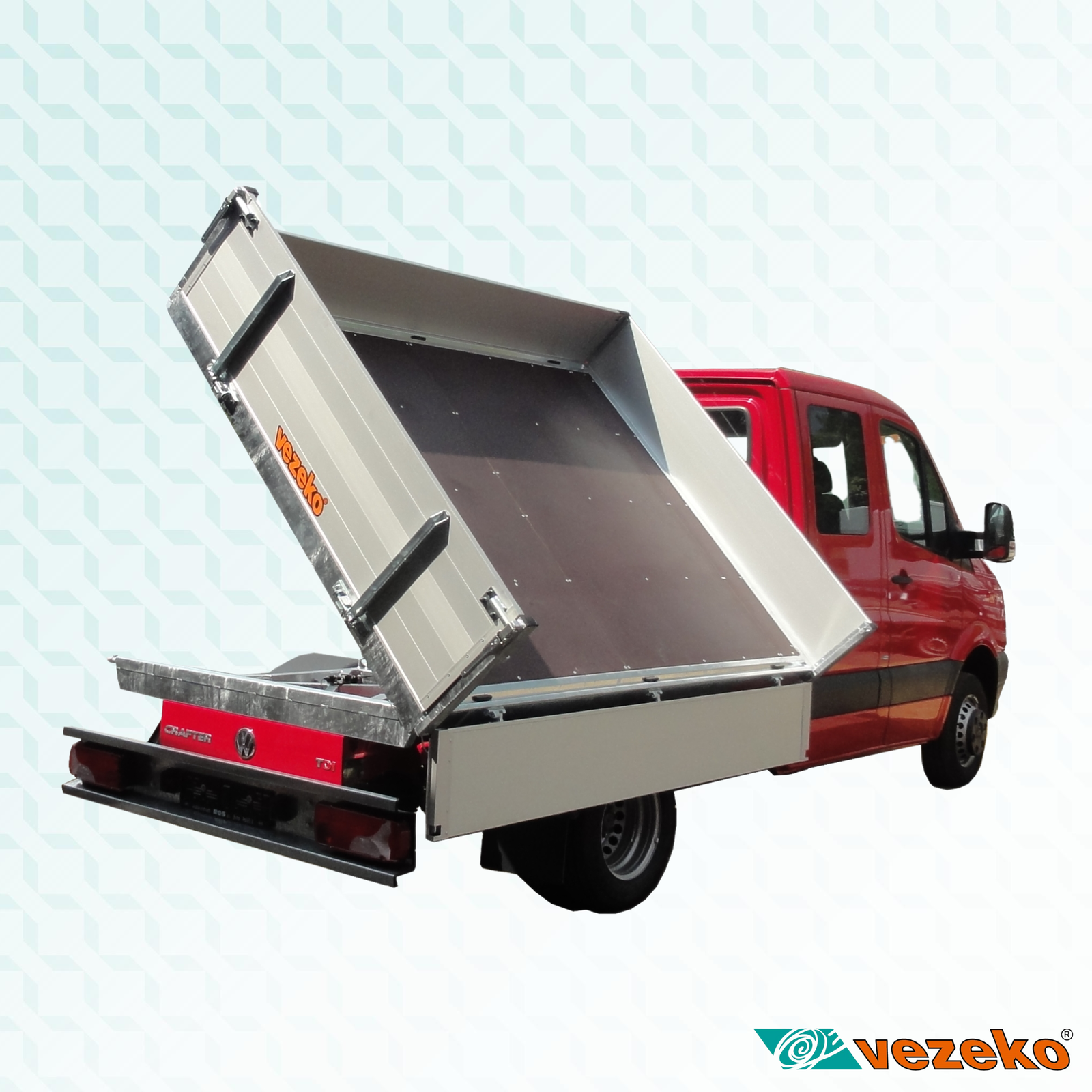

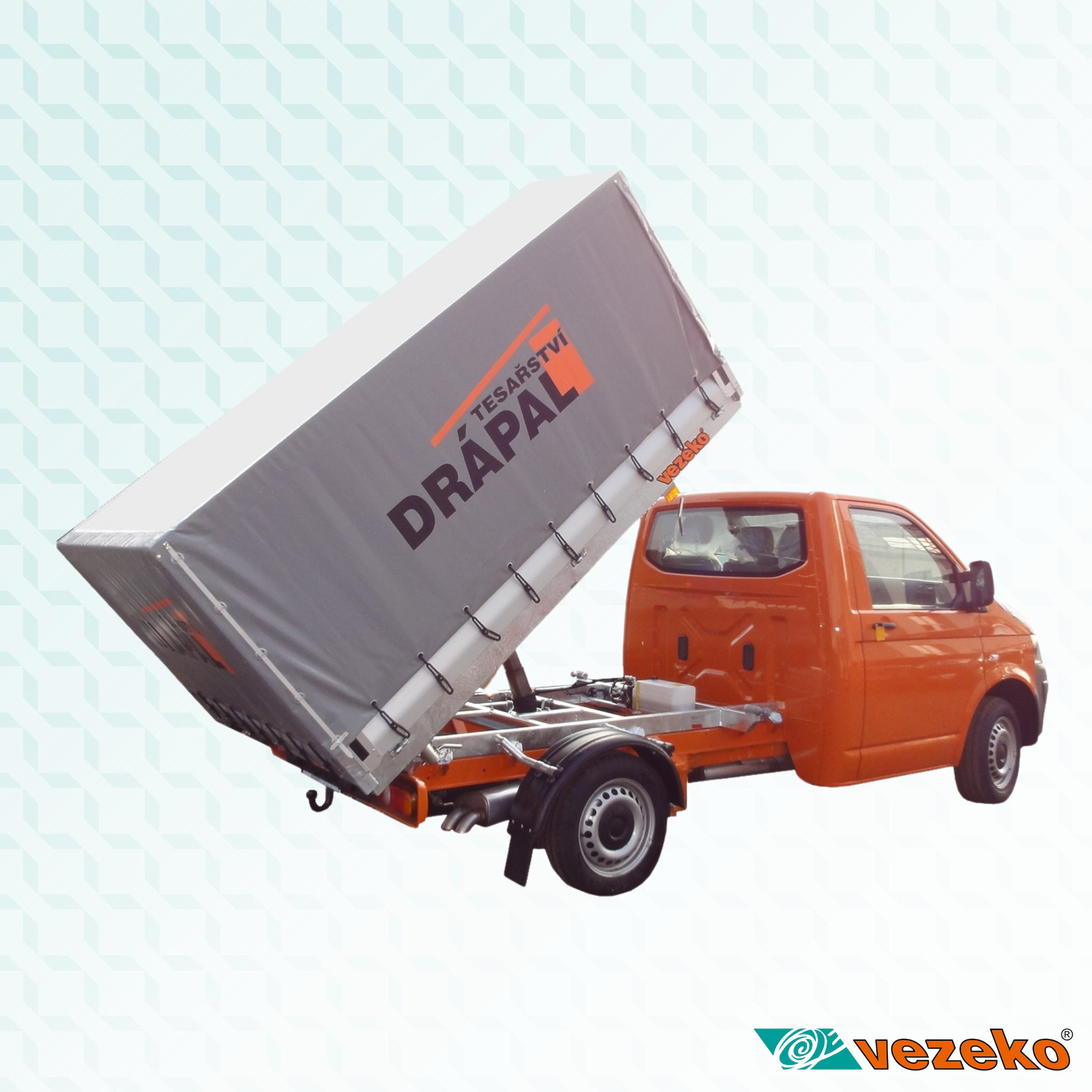

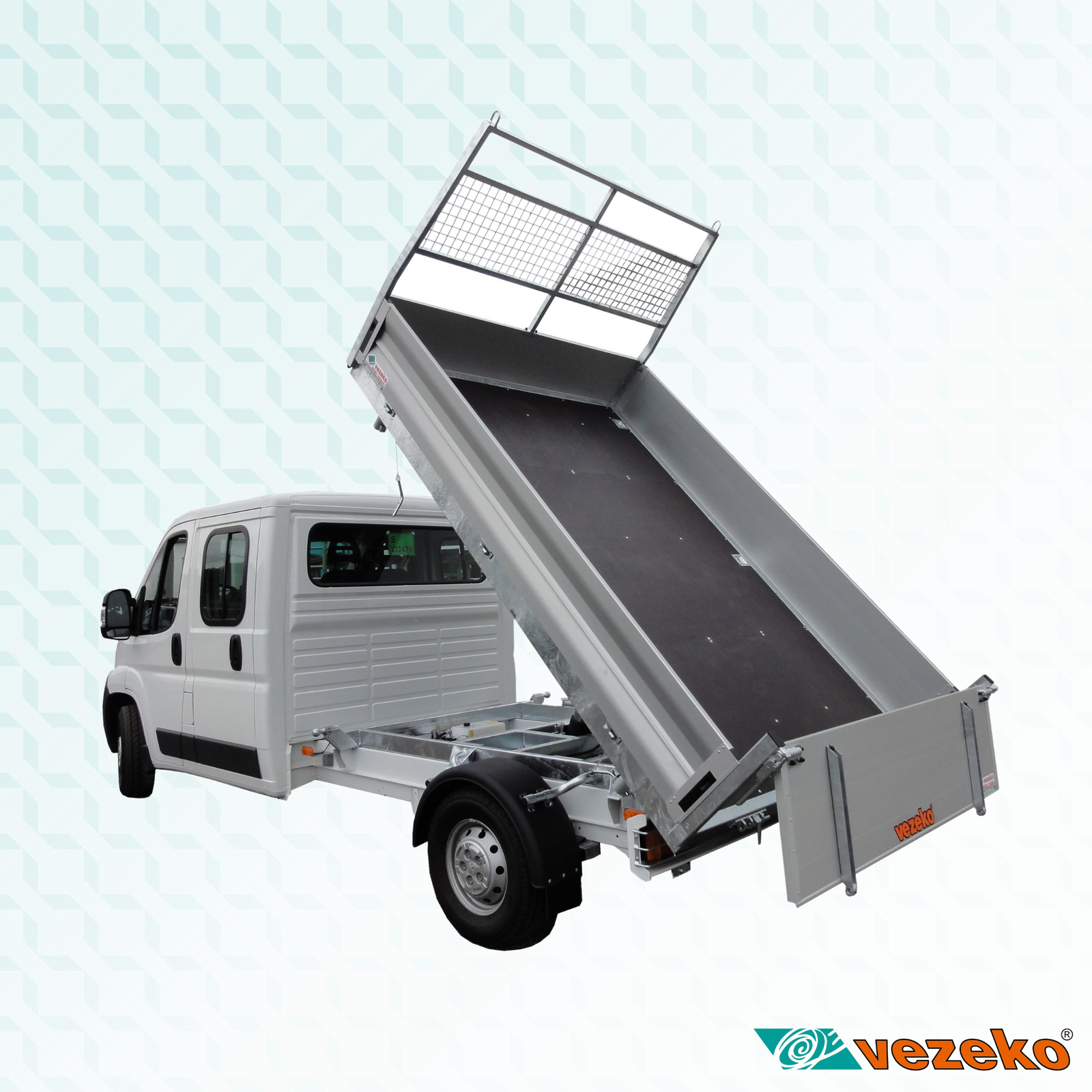

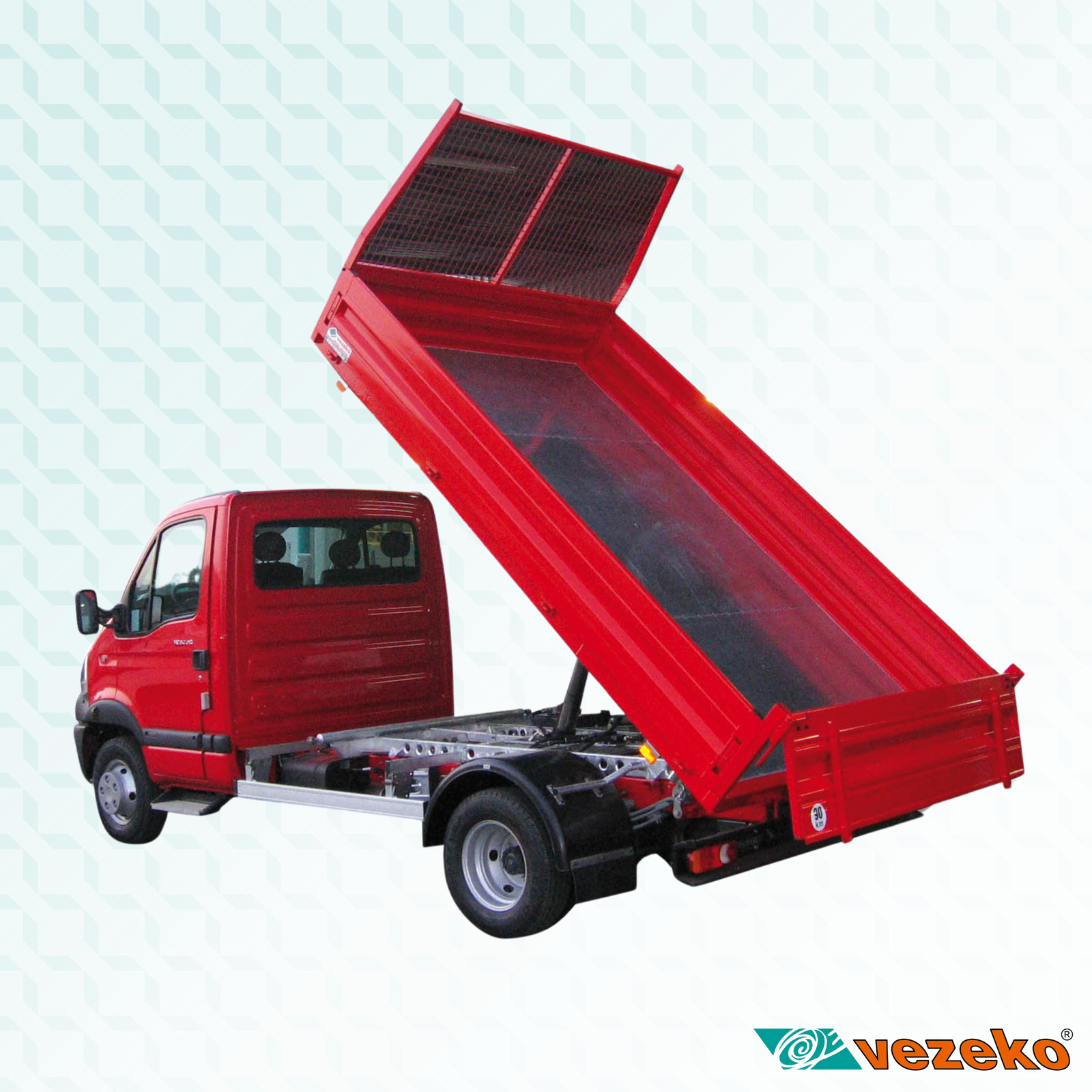

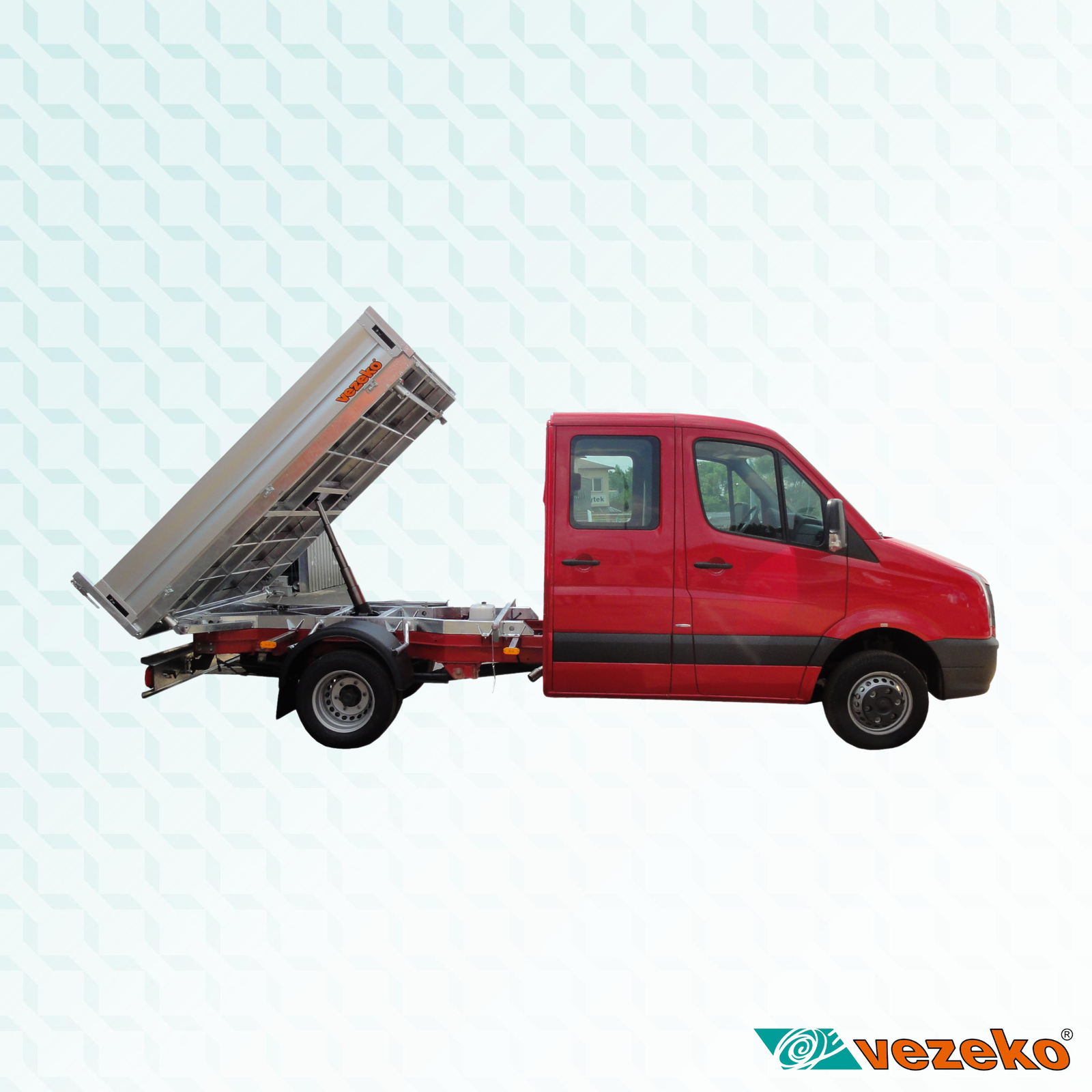

NÁSTAVBA_SKLOPNÁ_01 NÁSTAVBA_SKLOPNÁ_02 NÁSTAVBA_SKLOPNÁ_03 NÁSTAVBA_SKLOPNÁ_04 NÁSTAVBA_SKLOPNÁ_05

The basic frame and the frame of the tipping platform are welded of strong steel profiles. The peripheral steel rim is equipped with rotary bearings that enable three-sided tipping. The tipping frame is reinforced with ribs, and in the place of the hydraulic cylinder it is strengthened. The floor is made of water-resistant plywood or galvanized steel sheets, 3 mm thick. The side plates may be of anodized aluminium or painted steel. The bodies are equipped with tilting or removable underrun protection devices.
