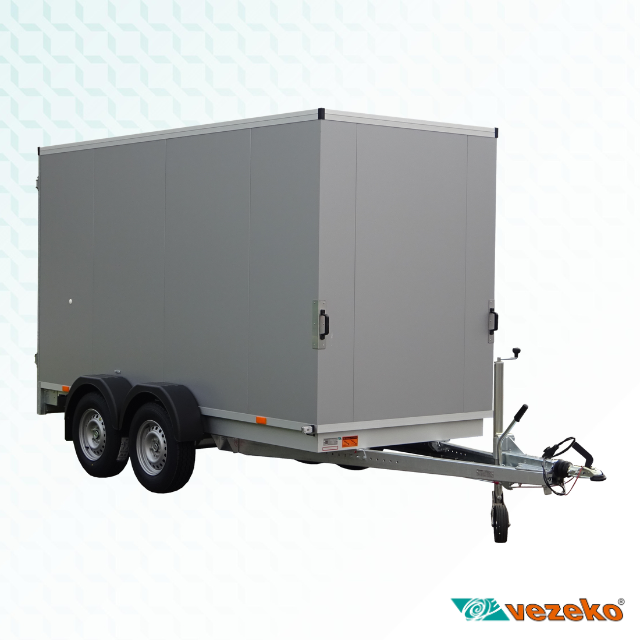

BOX TRAILER TK

Cabinet trailers

Code:

26 variants

Basic equipment

Steel solid frame, hot-dip galvanised, V-drawbar
Jockey wheel on braked trailers (unbraked trailers without support wheel)
Plastic wheel wedges

Lashing points
TK X xx.25 - 4x
TK X xx.30 - 4x
TK X xx.35 - 6x
TK X xx.40 - 8x

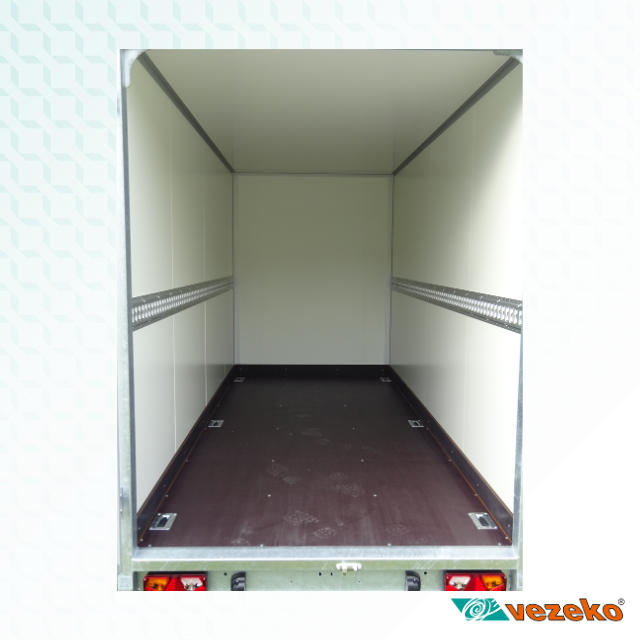

Plywood floor
Body in steel sheet sandwich 50mm in silver/gray-white

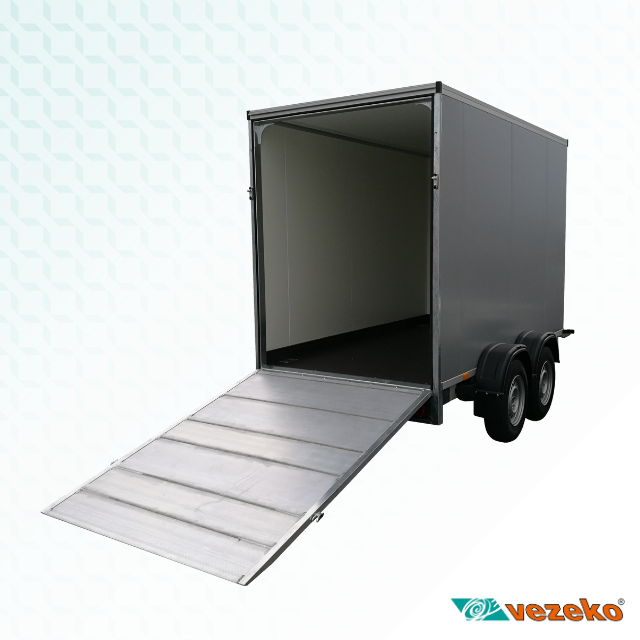

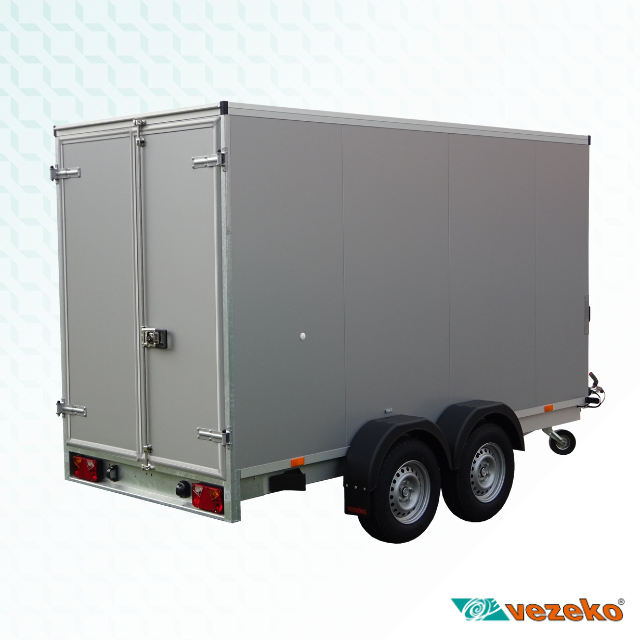

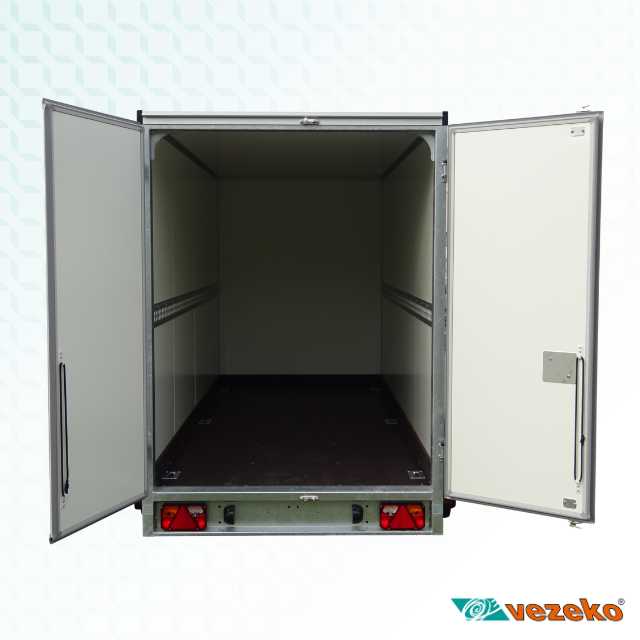

Rear double door, or flap, 1 x lock
Lighting 12V, 13-pin plug

Available body colours:
outside / inside
silver RAL 9006 / white RAL 9010 (STANDARD)
white RAL 9010 / white RAL 9010
black RAL 9005 / white RAL 9010

Trailer variants

Braking

Sort by:

Name	Bedding area l × w × h (mm)	Braking	Total weight
TK A 08.25 - Rear double doors	2460 × 1230 × 1500	No	750 kg	Find more
TK A 13.25 - Rear double doors	2460 × 1230 × 1500	Yes	1 300 kg	Find more
TK A 15.25 - Rear double doors	2460 × 1230 × 1500	Yes	1 500 kg	Find more
TK B 13.30 - Rear double doors	3010 × 1480 × 1930	Yes	1 300 kg	Find more
TK B 15.30 - Rear double doors	3010 × 1480 × 1930	Yes	1 500 kg	Find more
TK B 27.30 - Rear double doors	3010 × 1480 × 1930	Yes	2 700 kg	Find more
TK B 27.35 - Rear double doors	3510 × 1480 × 1930	Yes	2 700 kg	Find more
TK B 30.30 - Rear double doors	3010 × 1480 × 1930	Yes	3 000 kg	Find more
TK B 30.35 - Rear double doors	3510 × 1480 × 1930	Yes	3 000 kg	Find more
TK B 35.30 - Rear double doors	3010 × 1480 × 1930	Yes	3 500 kg	Find more
TK B 35.35 - Rear double doors	3510 × 1480 × 1930	Yes	3 500 kg	Find more
TK C 27.30 - Rear double doors	3010 × 1800 × 2050	Yes	2 700 kg	Find more
TK C 27.35 - Rear double doors	3510 × 1800 × 1930	Yes	2 700 kg	Find more
TK C 30.30 - Rear double doors	3010 × 1800 × 2050	Yes	3 000 kg	Find more
TK C 30.35 - Rear double doors	3510 × 1800 × 2050	Yes	3 000 kg	Find more
TK C 30.35 - Rear double doors	3510 × 1800 × 2050	Yes	3 500 kg	Find more
TK C 30.35 - Rear double doors	4010 × 1800 × 2050	Yes	2 700 kg	Find more
TK C 30.40 - Rear double doors	4010 × 1800 × 2050	Yes	3 000 kg	Find more
TK C 35.30 - Rear double doors	3010 × 1800 × 2050	Yes	3 500 kg	Find more
TK C 35.40 - Rear double doors	4010 × 1800 × 2050	Yes	3 500 kg	Find more
TK D 27.35 - Dvoukřídlé dveře vzadu	3510 × 2000 × 2050	Yes	2 700 kg	Find more
TK D 27.40 - Rear double doors	4010 × 2000 × 2050	Yes	2 700 kg	Find more
TK D 30.35 - Rear double doors	3510 × 2000 × 2050	Yes	3 000 kg	Find more
TK D 30.40 - Rear double doors	4010 × 2000 × 2050	Yes	3 000 kg	Find more
TK D 35.35 - Rear double doors	3510 × 2000 × 2050	Yes	3 500 kg	Find more
TK D 35.40 - Rear double doors	4010 × 2000 × 2050	Yes	3 500 kg	Find more
