Information about trailer

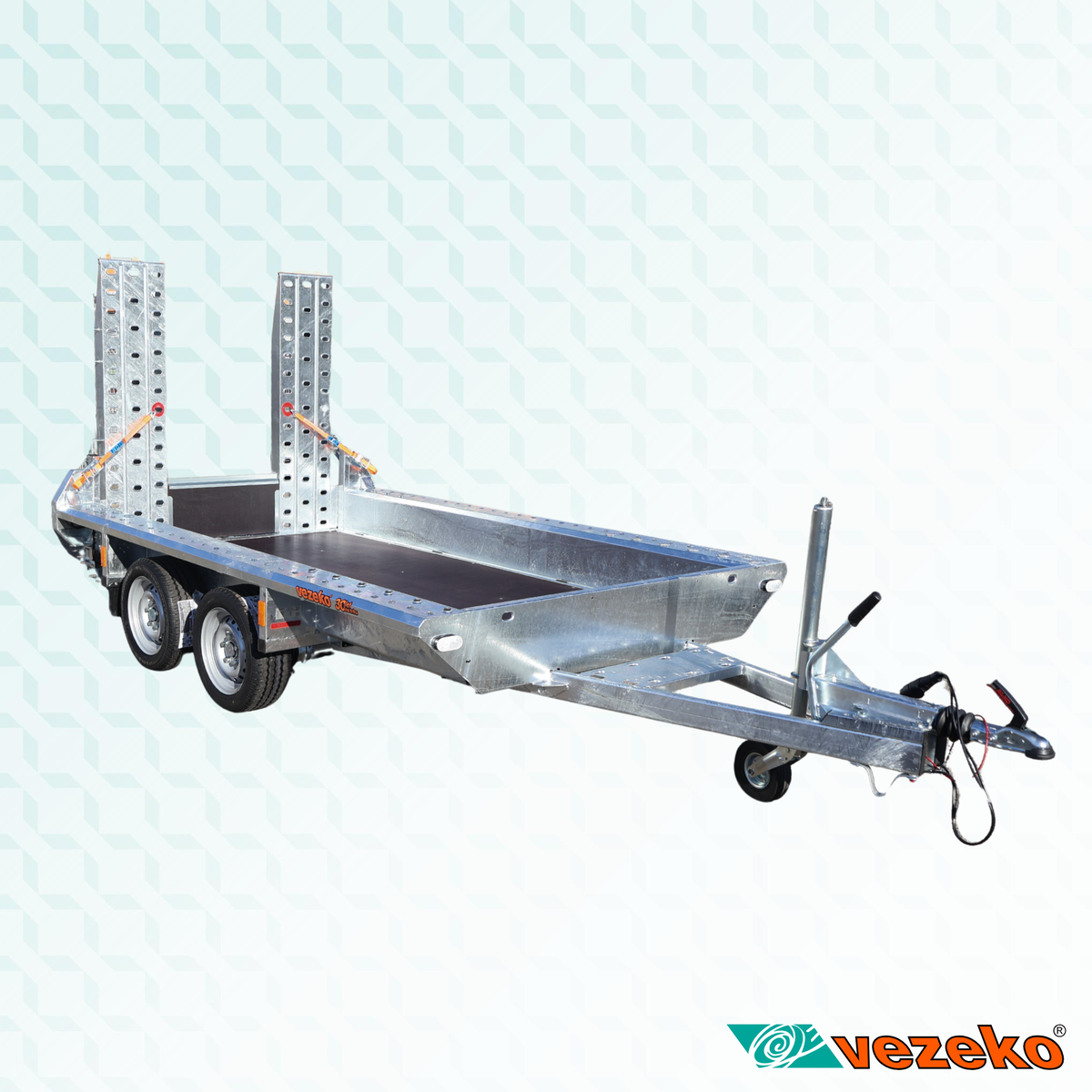

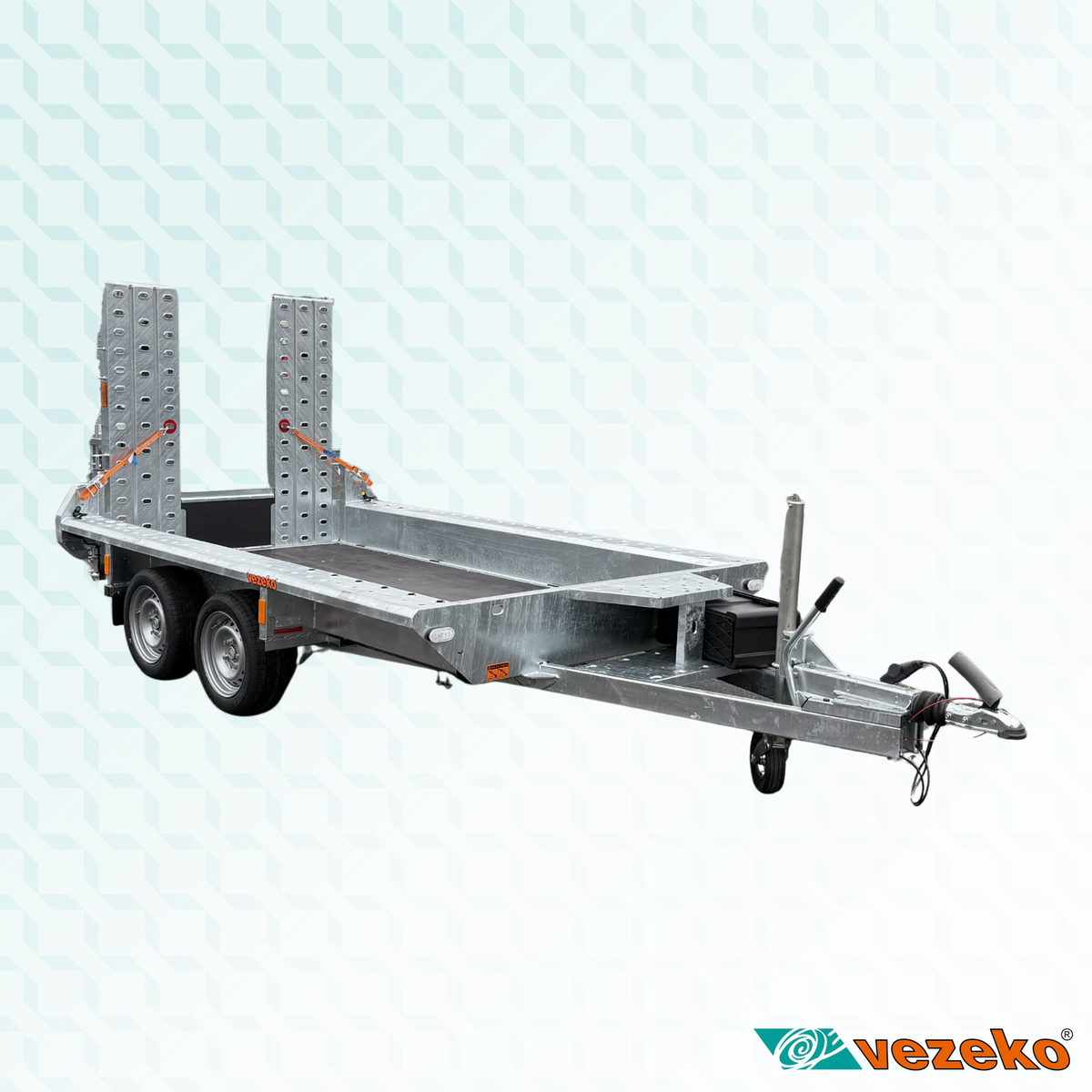

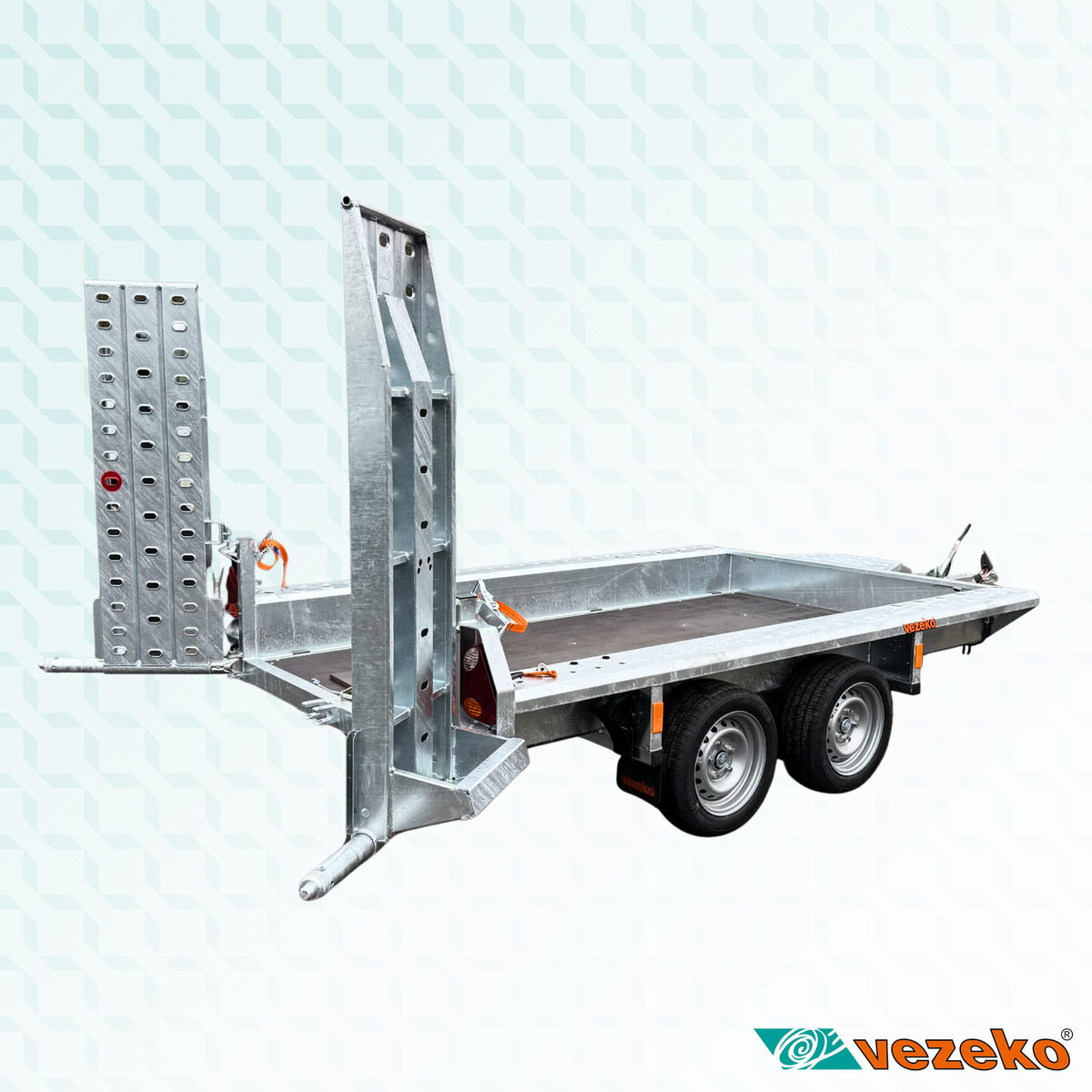

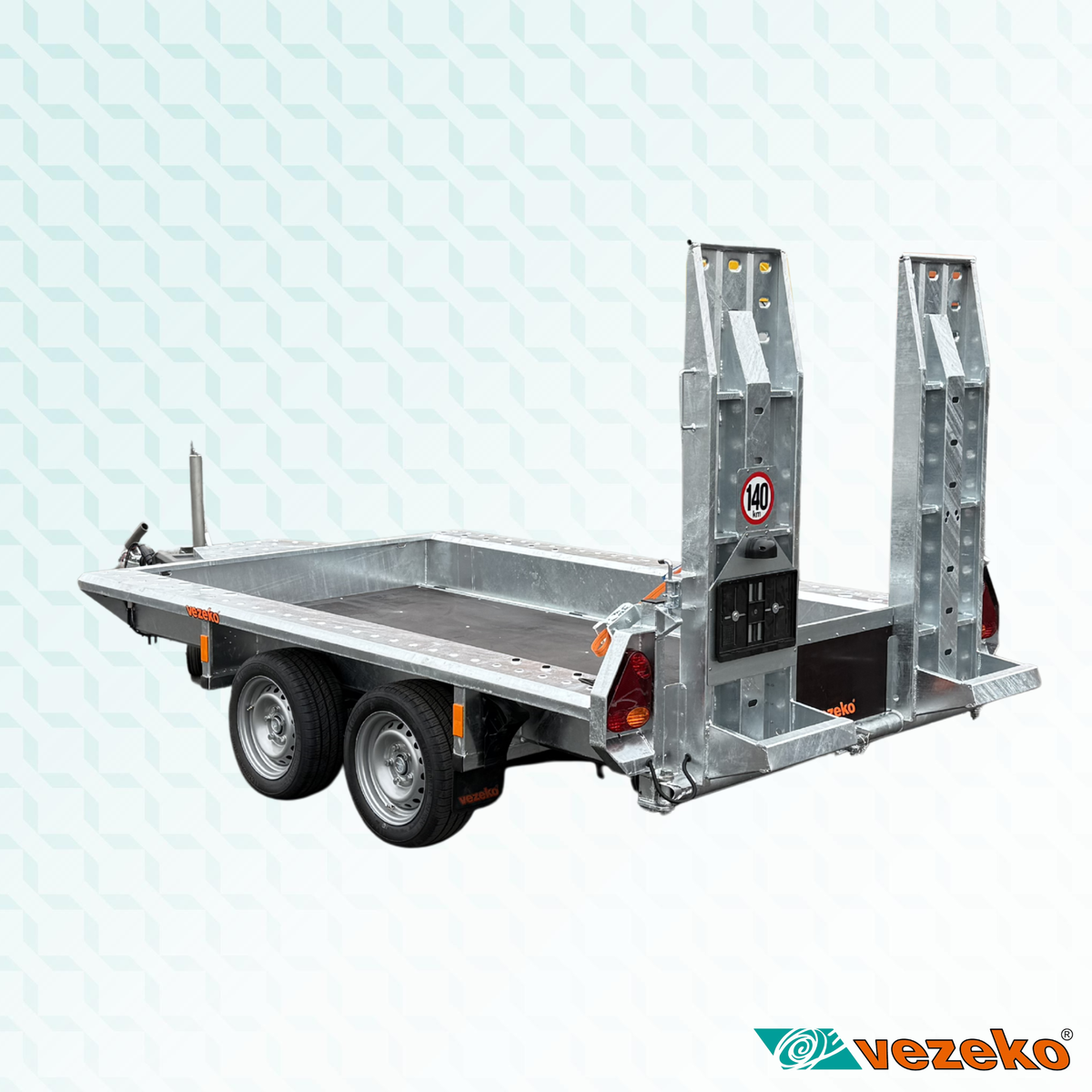

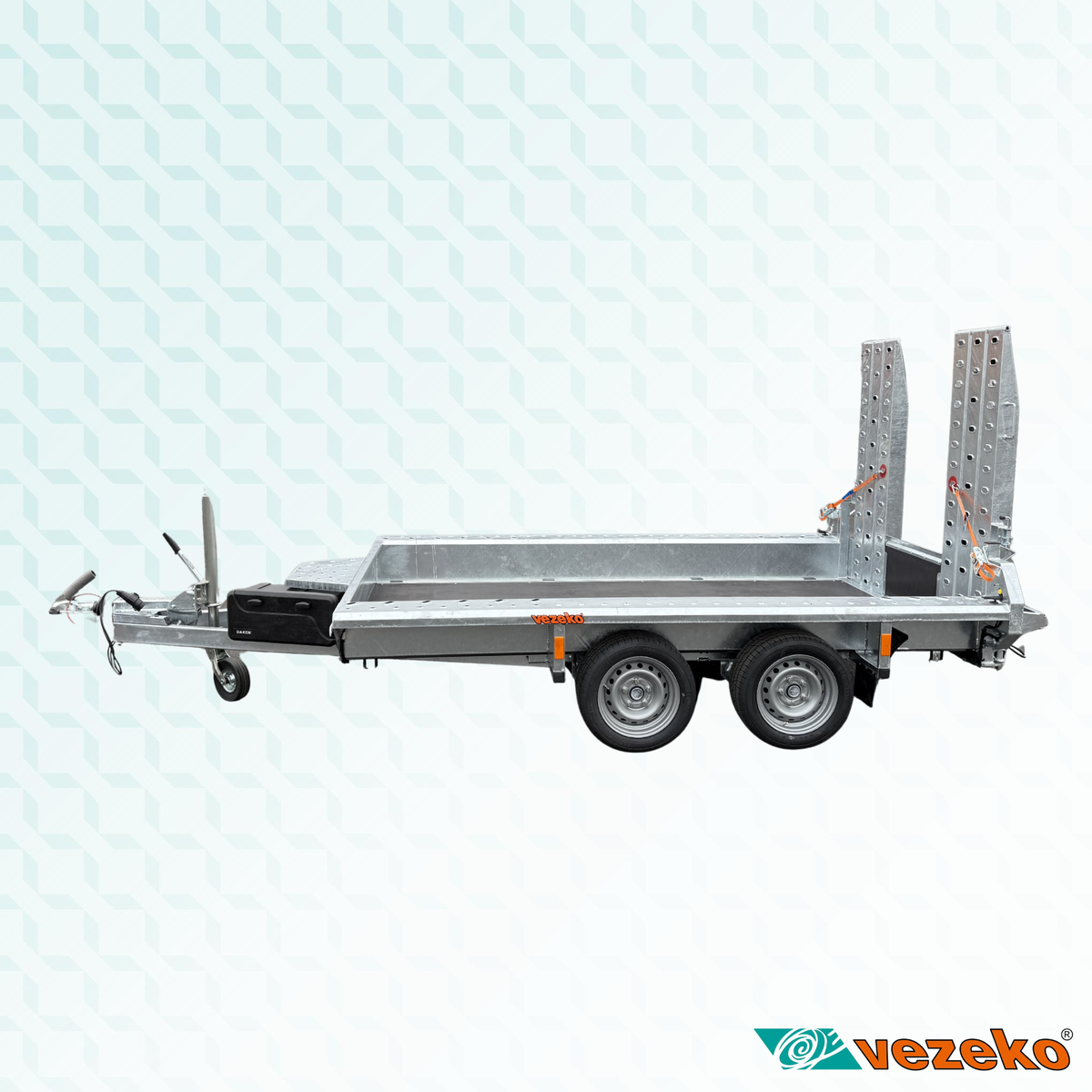

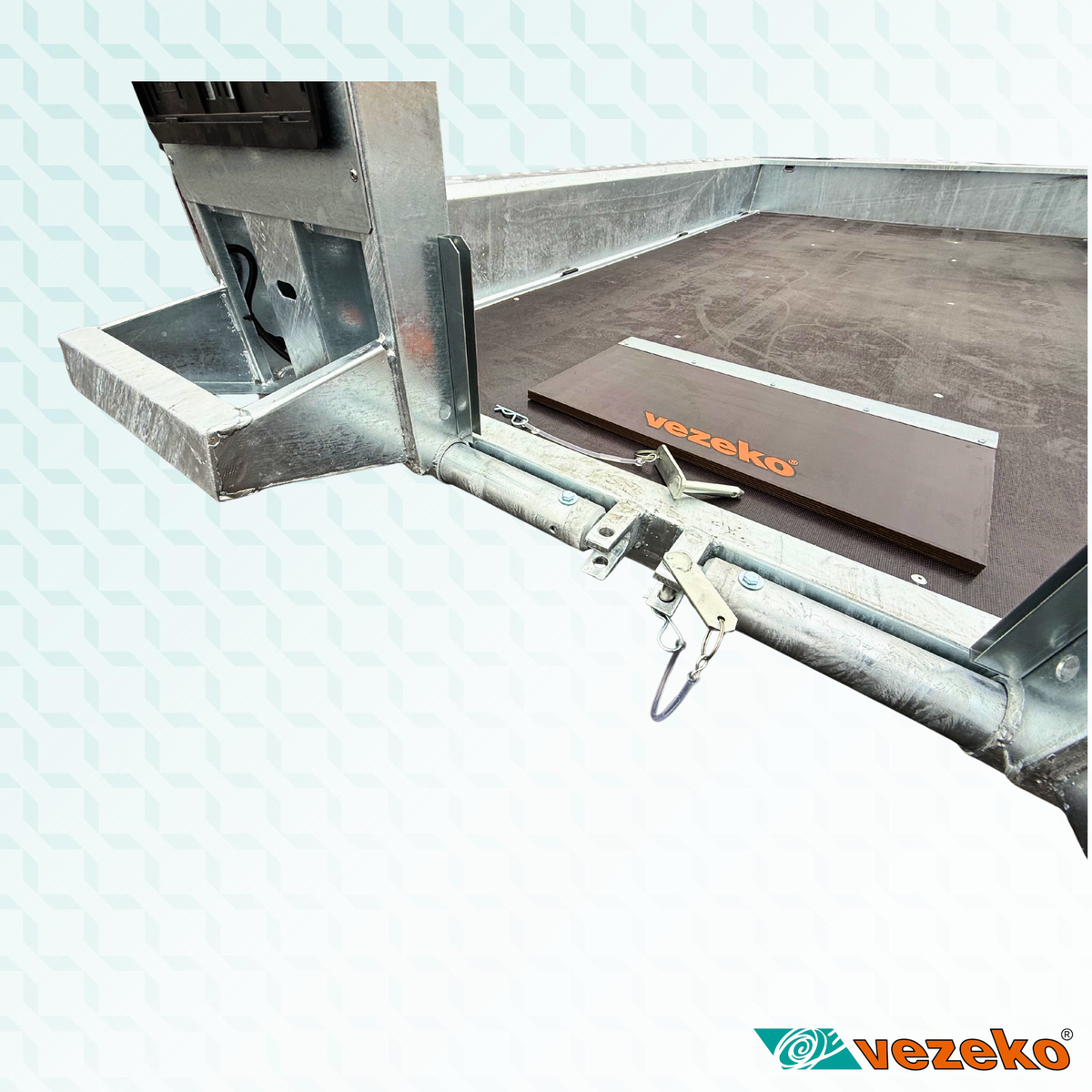

The trailers of the FALKE line are used in transporting construction machinery and municipal equipment. The trailers can be equipped with a rear access ramp or individual access strips. The strips can be moved to adjust to the required wheel track of individual machines. To secure the transported machines there are anchoring points installed in the floor as standard, the trailer is equipped with side plates of profiled metal sheets, and the floor consists of plywood. After the disassembly of the access ramp, the trailer may be used as a standard platform with a tilting rear face plate.
Basic equipment

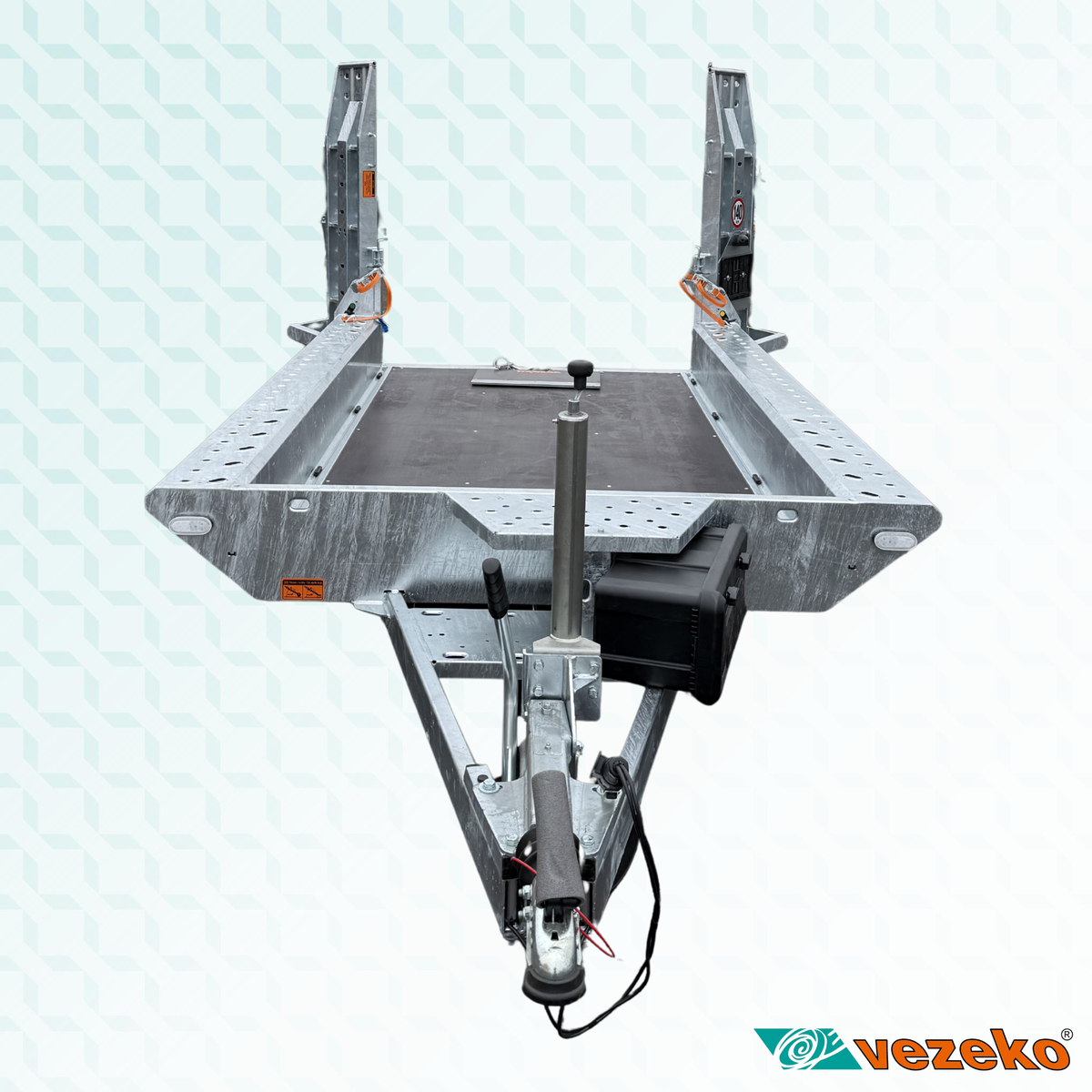

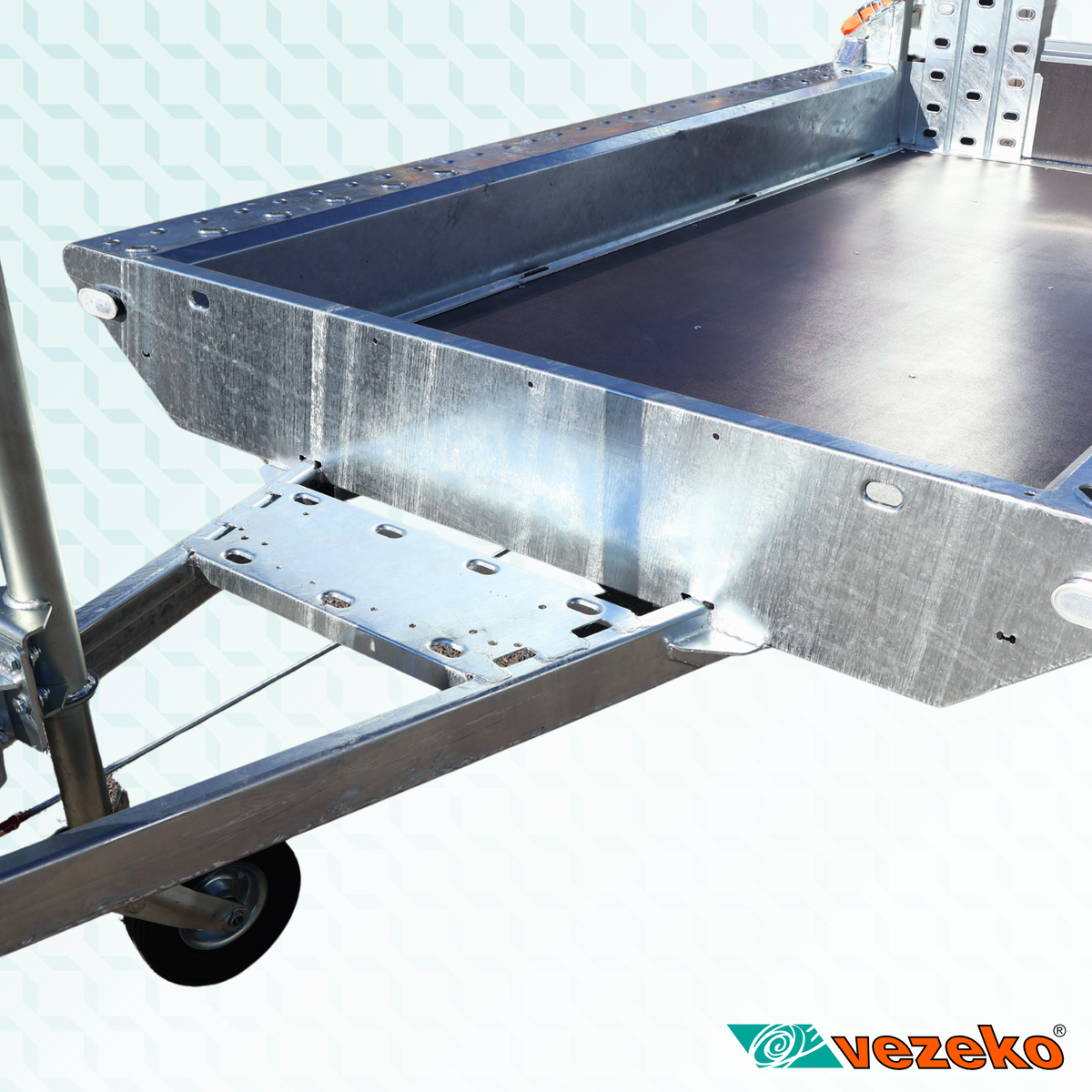

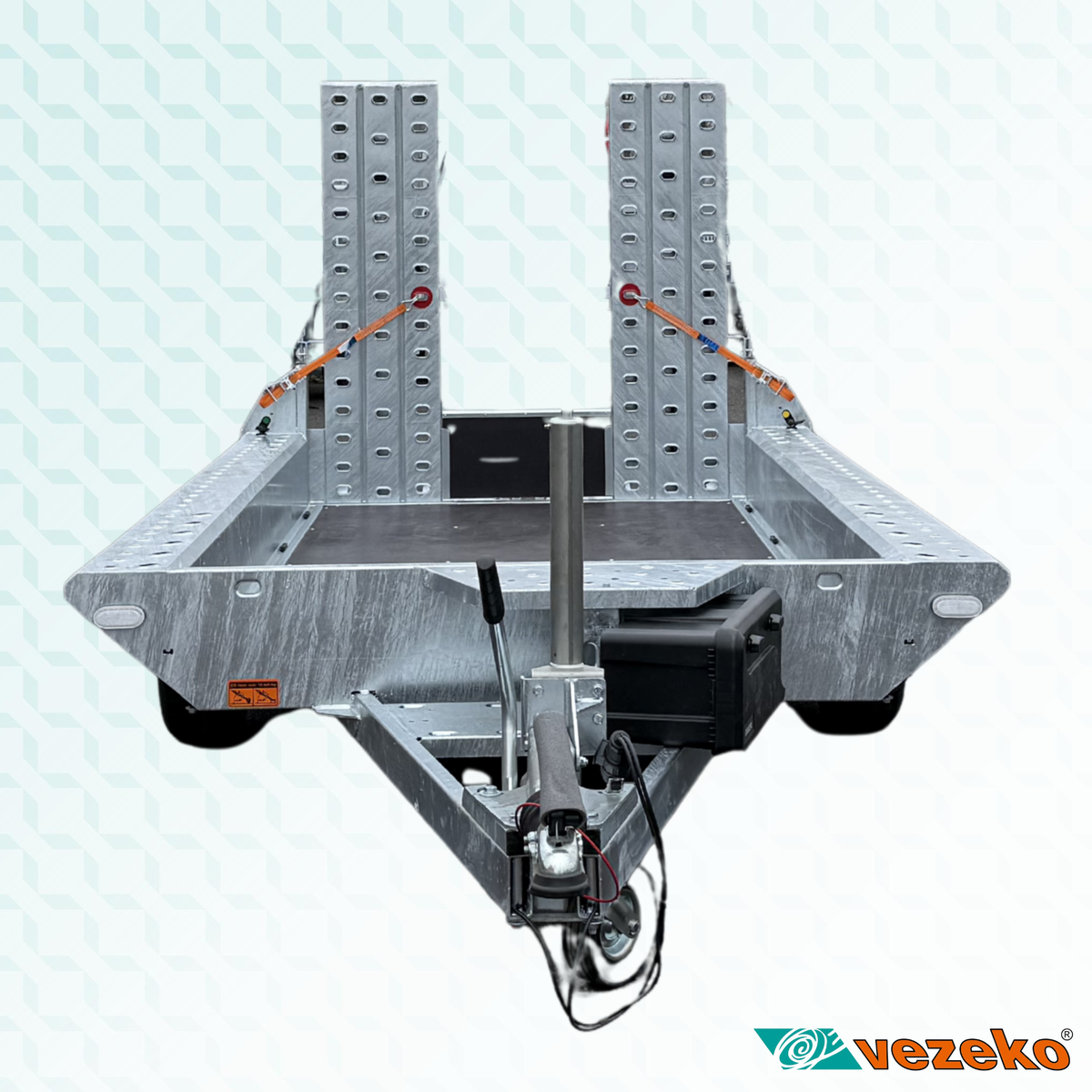

Hot-dip galvanised V-drawbar
Jockey wheel
Plastic wheel wedges - 2x
Lashing points
Plywood floor

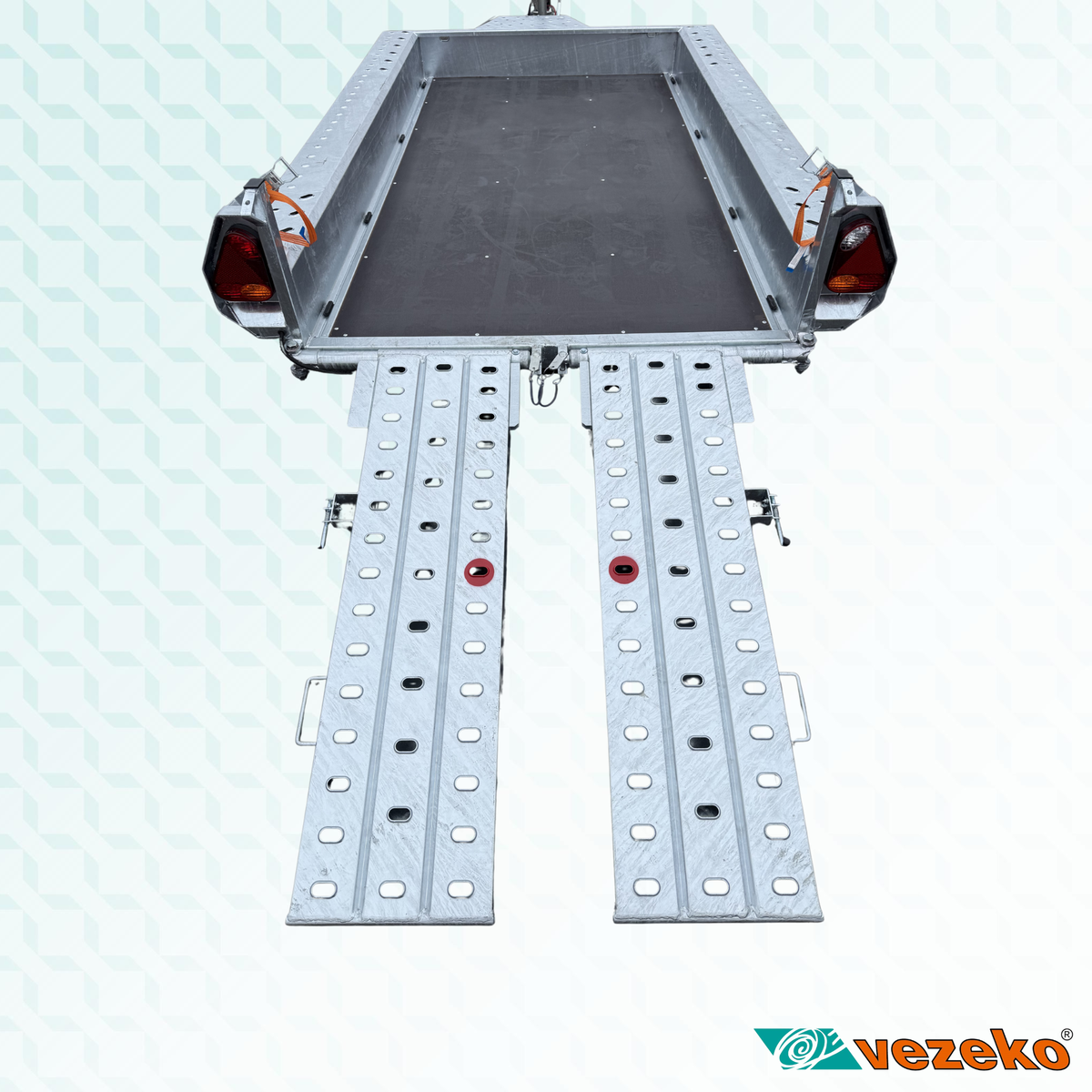

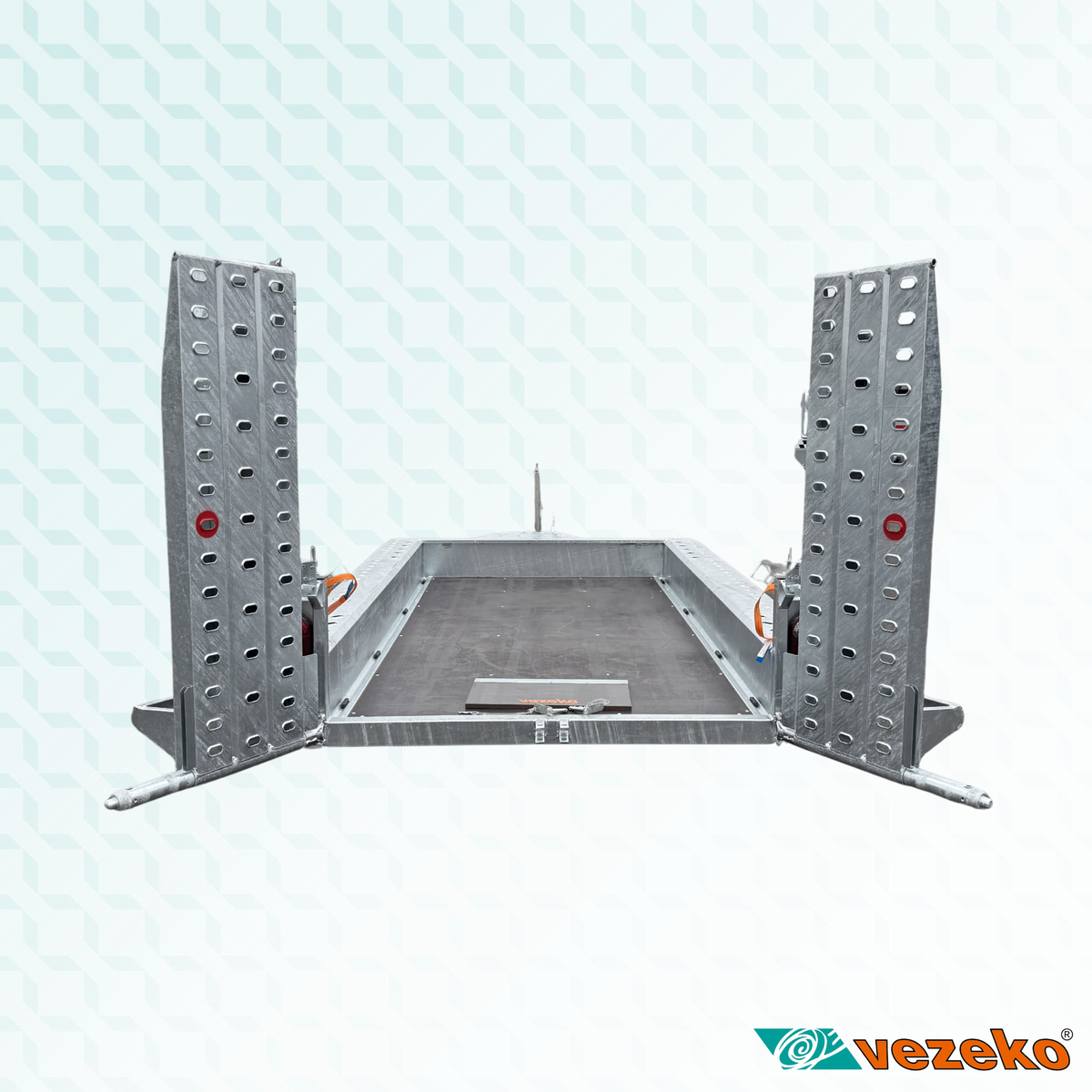

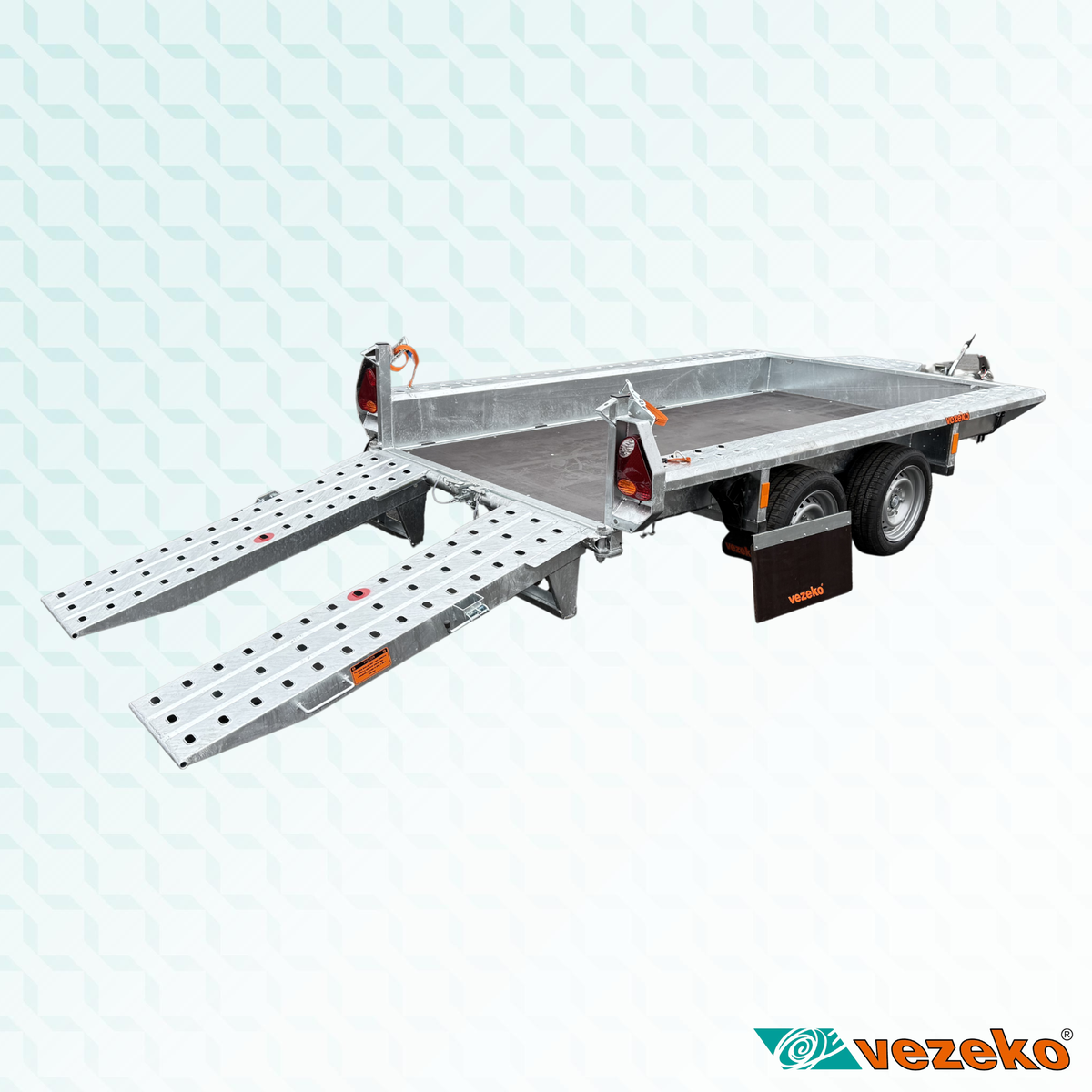

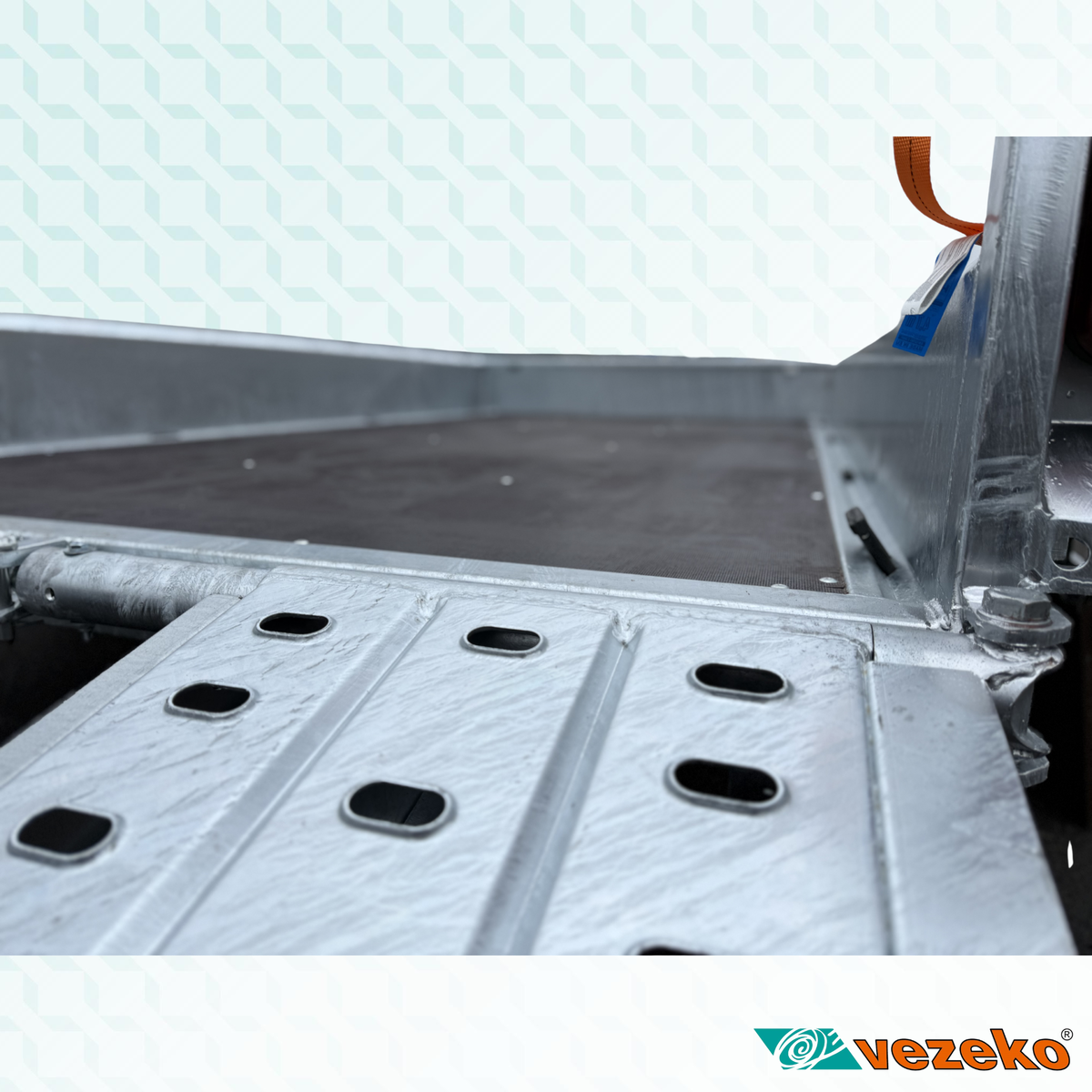

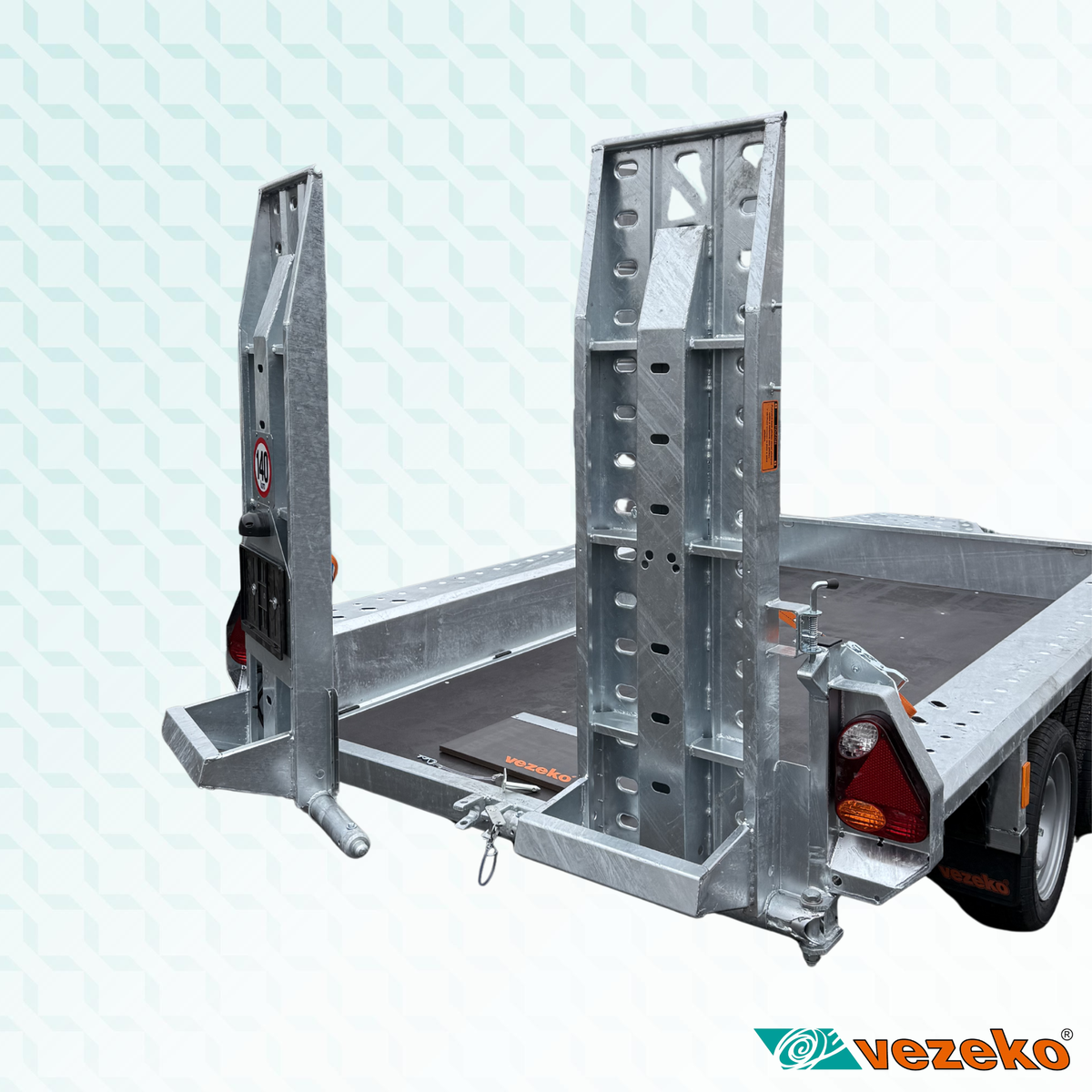

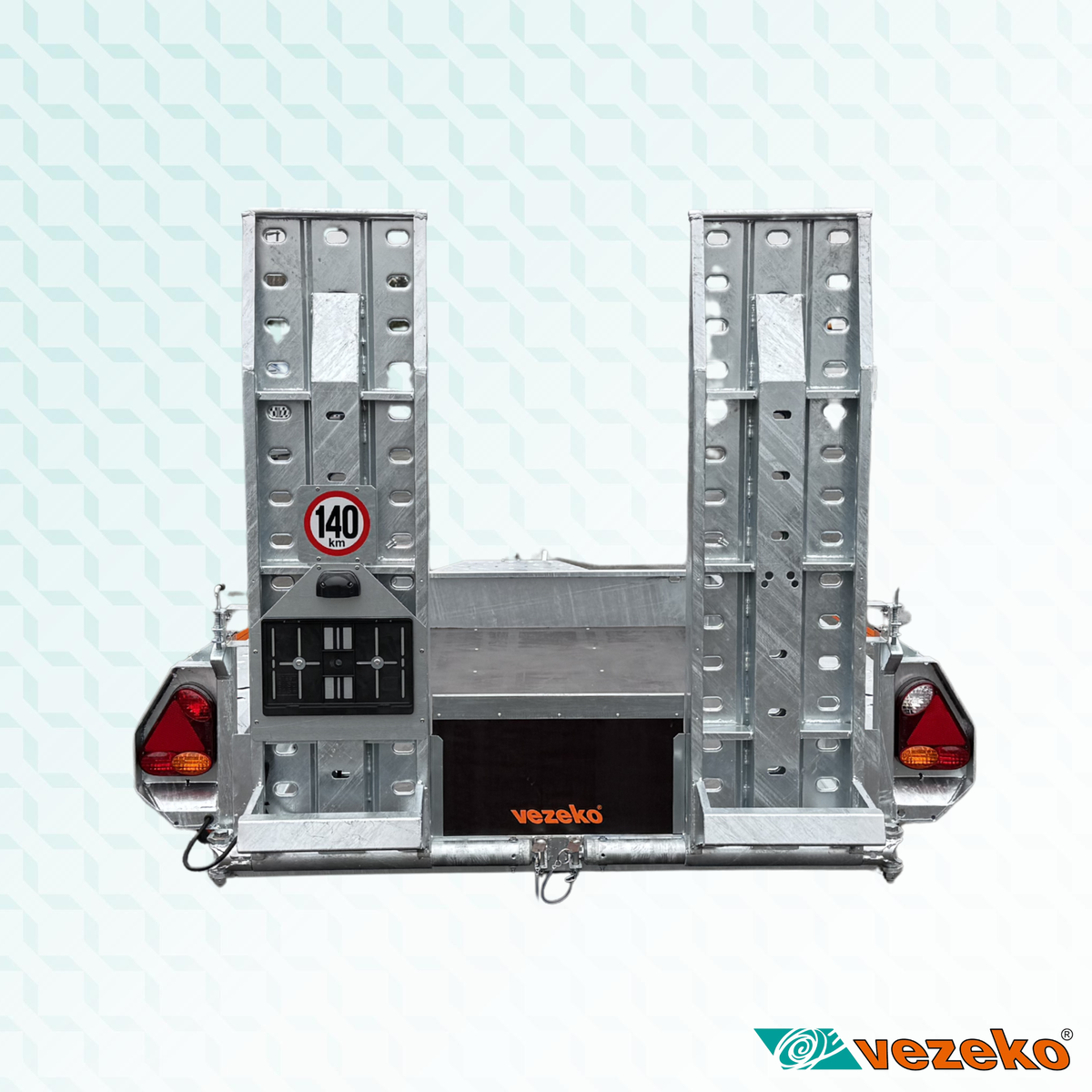

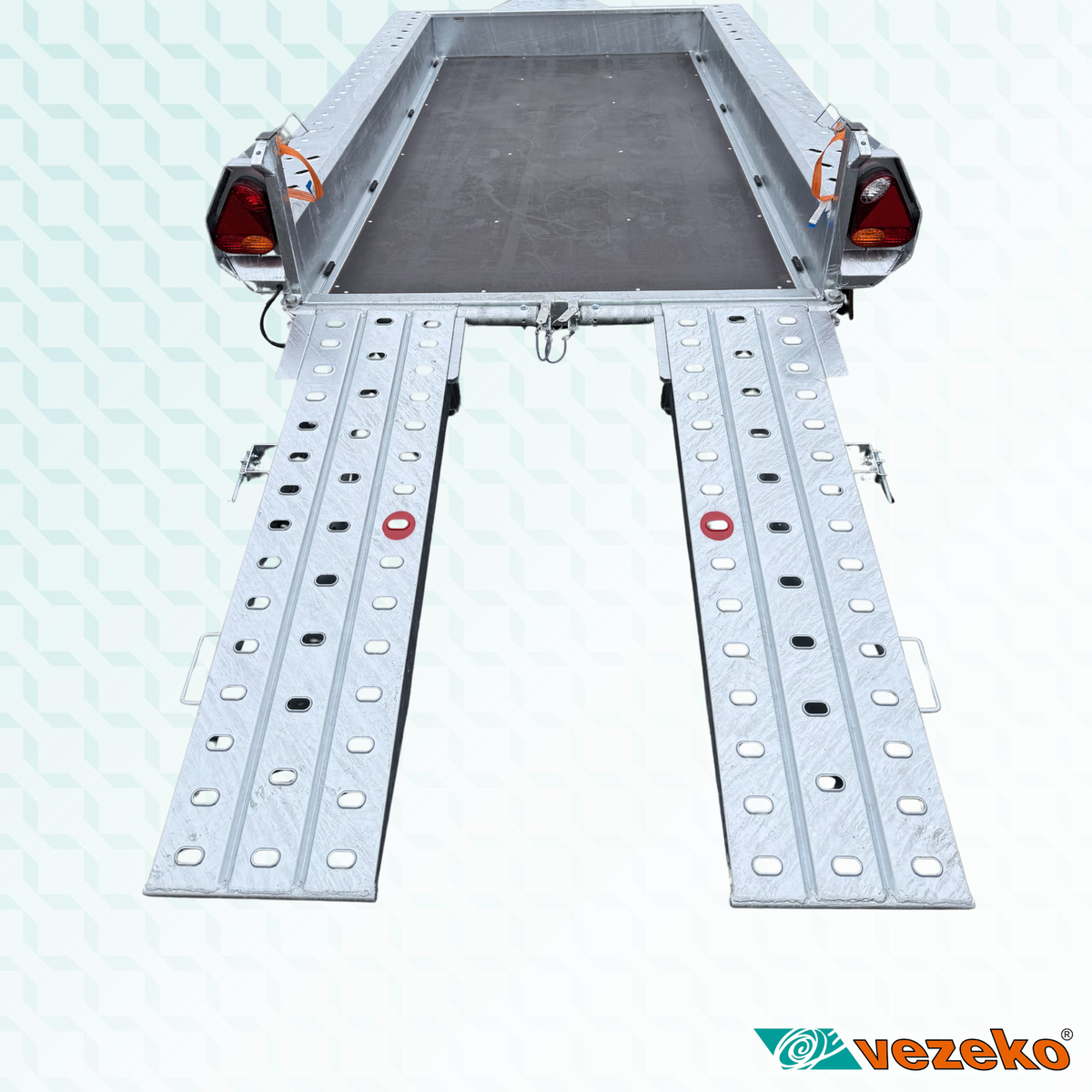

Hot-dip galvanized steel ramps with anti slip grid covering and integrated support legs
Metal side walls H: 250 mm, galvanised sheet made
Lighting 12V, 13-pin plug
Trailer variants
| Name | Bedding area l × w × h (mm) | Braking | Total weight | |
|---|---|---|---|---|
FALKE A 27.25 |
2490 × 1340 × 250 |
Yes |
2 700 kg |
Find more |
FALKE A 30.25 |
2490 × 1340 × 250 |
Yes |
3 000 kg |
Find more |
FALKE A 35.25 |
2490 × 1340 × 250 |
Yes |
3 500 kg |
Find more |
FALKE B 27.30 |
2980 × 1540 × 250 |
Yes |
2 700 kg |
Find more |
FALKE B 30.30 |
2980 × 1540 × 250 |
Yes |
3 000 kg |
Find more |
FALKE B 35.30 |
2980 × 1540 × 250 |
Yes |
3 500 kg |
Find more |
FALKE C 27.40-2 |
3990 × 1750 × 250 |
Yes |
2 700 kg |
Find more |
FALKE C 27.40-3 |
3990 × 1750 × 250 |
Yes |
2 700 kg |
Find more |
FALKE C 30.40-2 |
3990 × 1750 × 250 |
Yes |
3 000 kg |
Find more |
FALKE C 30.40-3 |
3990 × 1750 × 250 |
Yes |
3 000 kg |
Find more |
FALKE C 35.40-2 |
3990 × 1750 × 250 |
Yes |
3 500 kg |
Find more |
FALKE C 35.40-3 |
3990 × 1750 × 250 |
Yes |
3 500 kg |
Find more |
